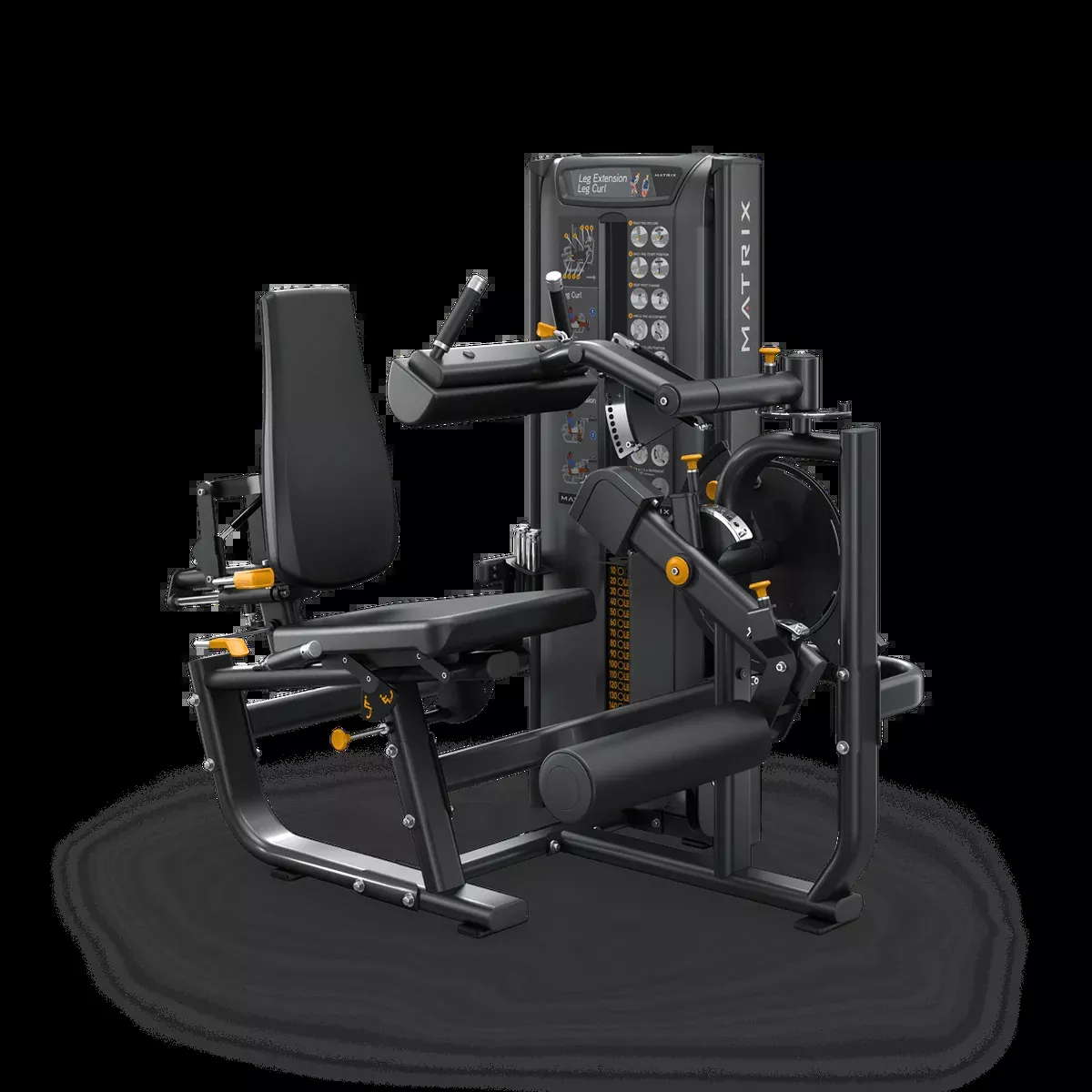

Matrix Versa MD Leg Extension / Leg Curl
The Matrix Versa MD Leg Extension / Leg Curl is a dual-function strength machine engineered for medical, rehabilitation, and high-performance fitness environments. Built under the Versa Series platform, it features a low starting weight and incremental weight system designed to help injured or deconditioned clients get started safely and progress at a controlled pace. The range-of-motion limiter restricts stroke to support isometric contractions and protect clients from overextension – making it an ideal choice for physical therapy clinics, medical fitness centers, and high-end commercial gyms. Extensive gas-assisted adjustments across the back pad, thigh pad, and seat accommodate a wide range of body types and exercise protocols with minimal effort. Class 1 Medical Device (CE Certified), this machine meets the rigorous standards required for clinical and medically supervised fitness settings.
The Versa Series is designed with facility aesthetics and floor efficiency in mind – machines can be configured back-to-back to minimize footprint, and the consistent 63-inch stack height creates a clean, uniform look across your strength floor. With color-coded adjustment points, electronic rep counter and timer, and ergonomically designed action-specific grips, the Versa MD Leg Extension / Leg Curl delivers a professional, intuitive experience for both operators and users.
Key Features
- Class 1 Medical Device (CE Certified): Meets medical-grade standards for use in clinical, rehabilitation, and medically supervised fitness environments.
- Low Starting Weight and Incremental System: Weight increments of 2, 4, 6, and 8 lbs allow precise progression for injured or deconditioned clients.
- Range-of-Motion Limiter: Restricts stroke to support isometric contractions and prevent overextension during recovery or rehabilitation protocols.
- 200 lb Weight Stack / 208 lb Max Training Weight: Provides a full range of resistance suitable for general fitness and performance training alike.
- Gas-Assisted Multi-Position Adjustments: Back pad adjusts to 7 horizontal positions and 4 recline angles (10, 20, 30, 45 degrees); thigh pad offers 9 positions for precise fit.
- 12 User Starting Positions: Accommodates a wide range of body types and exercise requirements quickly and consistently.
- Electronic Rep Counter and Timer: Tracks reps, activity time, and rest time for a streamlined, structured workout experience.
- Color-Coded Adjustment Points: Clearly marked for ease of use – operators and users can make changes quickly without instruction.
- Action-Specific Ergonomic Grips: Designed to reduce stress on contact points while enhancing feel and proper form during both leg extension and leg curl movements.
- Back-to-Back Configuration Compatible: Machines can be oriented to minimize facility footprint and reduce traffic flow disruptions.
- Proprietary Two-Coat Powder Frame Finish: Available in Iced Silver, Matte Black, Gloss Black, Lace White, and Polarized Titanium for a polished, professional look.
Shipping
Ships free! Please email us at [email protected] for a delivery ETA or to confirm shipping details.
What’s Included
- Matrix Versa MD Leg Extension / Leg Curl machine (MD-S711)
- 200 lb weight stack
- Exercise placards (muscle callouts, stretching, start and finish illustrations)
- Personal storage area
Why You’ll Love It
The Matrix Versa MD Leg Extension / Leg Curl is trusted by medical fitness centers, rehabilitation clinics, and commercial facilities that demand the highest standard of care and durability. Its CE-certified Class 1 Medical Device status means it has undergone rigorous testing – giving facility directors and clinical operators complete confidence in its safety and performance. The gas-assisted adjustment system makes it fast and effortless to configure the machine for each individual user, keeping sessions efficient and reducing staff workload during busy periods. Built with Matrix’s industry-leading warranties and backed by integrated service solutions, this machine is engineered for years of dependable use in high-traffic environments. Whether you’re outfitting a physical therapy department or upgrading a premium gym floor, the Versa MD delivers the versatility, precision, and clinical credibility your facility deserves.
Product Specifications
| Model | MD-S711 |
|---|---|
| Overall Dimensions (L x W x H) | 217 x 125.4 x 162.5 cm / 85.5″ x 49.4″ x 64″ |
| Product Weight | 340 kg / 750 lbs |
| Max User Weight | 159 kg / 350 lbs |
| Weight Stack | 91 kg / 200 lbs |
| Max Training Weight | 94.6 kg / 208 lbs |
| Incremental Weight System | 0.9, 1.8, 2.7, 3.6 kg / 2, 4, 6, 8 lbs |
| Back Pad Horizontal Adjustment | 7 positions (gas assisted) |
| Back Pad Recline Adjustment | 4 positions – 10, 20, 30, and 45 degrees (gas assisted) |
| Thigh Pad Adjustment | 9 positions (gas assisted) |
| Ankle Pad Adjustment | 4 positions |
| Seat Pivot Adjustment | 2 positions |
| User Starting Positions | 12 |
| Range Limiter | Yes |
| Swing Arm Adjustment | Yes, pivots thigh pad away from user |
| Frame Colors Available | Iced Silver, Matte Black, Gloss Black, Lace White, Polarized Titanium |
| Upholstery Colors Available | Black, American Beauty Red |
| Frame Finish | Proprietary two-coat powder process |
| Cable Transmission | Internally lubricated cables and fittings |
| Machine Anchoring Points | 3 |
| Certification | Class 1 Medical Device, CE Certified |
| Stack Height | 63″ |
| Personal Storage | Yes |
| Electronic Rep Counter/Timer | Yes |
Manuals & Guides
- Warranty & Service Info
FAQ
CE Certification as a Class 1 Medical Device means the Matrix Versa MD Leg Extension / Leg Curl has been evaluated and meets the European Union’s safety, health, and environmental protection standards for medical equipment. This certification is particularly important for rehabilitation clinics, hospital fitness centers, and medically supervised training environments where regulatory compliance is required. It gives facility operators confidence that the machine is built to a higher standard of safety and documentation than standard commercial gym equipment.
Yes – the Versa MD is specifically designed with rehabilitation and clinical fitness in mind. The low starting weight, fine weight increments (as small as 2 lbs), and range-of-motion limiter make it ideal for working with injured, post-surgical, or deconditioned clients who need a controlled, progressive approach to strength training. Its Class 1 Medical Device certification further supports its use in clinical environments.
Adjustment is fast and intuitive. Gas-assisted mechanisms on the back pad, thigh pad, and seat mean users or trainers can reposition the machine with minimal effort. All adjustment points are color-coded for quick identification, and 12 starting positions accommodate a wide range of body types. This makes turnover between users smooth and efficient, even in high-traffic facilities.
Yes. Versa Series machines are designed for back-to-back configuration, with user entry facing the same direction to reduce overall floor footprint and minimize traffic flow through the facility. This makes the Versa Series an excellent choice for facilities looking to maximize their strength training floor space without sacrificing the number of stations.
Due to its size and weight (750 lbs), professional delivery and installation is strongly recommended. Please contact us at [email protected] to discuss delivery logistics, setup requirements, and any freight or installation arrangements specific to your facility.
Matrix Fitness offers industry-leading warranties on their strength equipment. For specific warranty terms applicable to the Versa MD Leg Extension / Leg Curl, please refer to the Warranty and Service Info document available for download on this page, or contact us and we will provide the details for your region.
